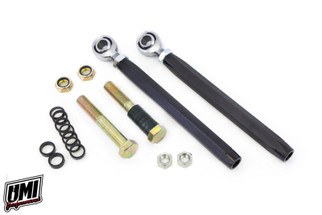

UMI Performance 71-72 GM A-Body Bump Steer Adjuster Kit

UMI’s 4060-1 GM A-body bump steer kit (1971-1972) is designed to reduce or eliminate toe change during suspension travel (bump steer). This improves handling, straight line stability, and overall precision of the steering system. The kit includes a heavy-duty 5/8″ bolt for the outer tie rod stud to increase strength over the factory tapered design. The adjuster is made of 6061-T6 Aluminum hex for lightweight strength and features a hard anodized protective finish. Shims of 0.125”, 0.1875” and 0.250” are included in the kit. These bump steer kits have been race-tested and are proudly designed and manufactured in Philipsburg, PA, USA. Note: Spindle drilling is required to accept the 5/8″ adjustment bolt. Once drilled, the spindle cannot be returned to the factory taper. For the 1971-1972 GM A Body, the kit uses the factory inner tie rod. If replacement is required, use Proforged 104-10016 or an equivalent, (2) are required. Bump steer adjustment tools and theory can be found at longacreracing.com. UMI’s 4060-1 GM A-body bump steer kit (1971–72) reduces toe change for improved handling and stability. It features a 5/8″ bolt, 6061-T6 anodized adjuster, and shims for tuning. Race-tested and made in PA, USA. Spindle drilling required.

• 6061-T6 Black Anodized Aluminum Adjuster Sleeve; 5/8-18 RH and 11/16-18 LH threads, 9.200" sleeve length
• Works with factory inner tie rods and factory spindle
• Race quality rod end, jam nuts and locking hardware
• Laser cut spacers of 0.125", 0.1875" and 0.250"
• Manufactured with pride in Philipsburg, PA, USA
• Simply bolt-on. No spindle drilling required
• Instructions with technical links included
• 4140 CrMo stud construction
• Race proven
