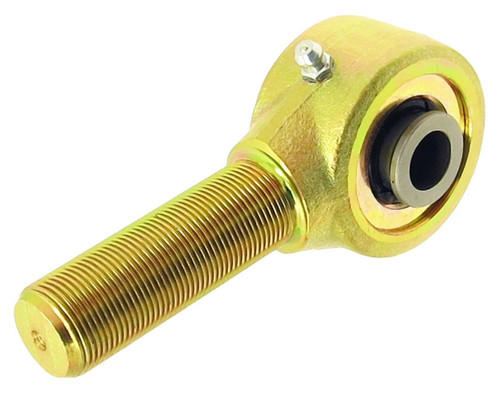

RockJock Johnny Joint Rod End 2in Narrow Forged 7/8in-14 RH Threads 2.115in x .490in Ball

RockJocks narrow forged Johnny Joints for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint features a narrow 2 in. diameter joint body, fitted with a zerk fitting for greasing, 2.3 in. of 7/8 in.-14 right hand threads on the shank, and a 2.115 in. mounting width ball with a .490 thru bolt hole. Finished in gold zinc plating. Johnny Joint® Rod End; 2 in.; Narrow Forged; 0.875 in.-14 RH Threads; 2.115 in. x .490 in. Ball;
