ICON 2017+ Ford Raptor Stage 3 Suspension System

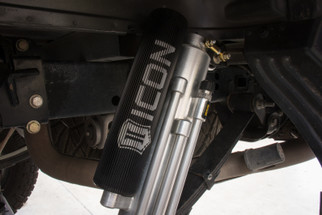

The rear of the updated Ford Raptor was a highlight for ICON engineers, as new changes proved to be for the better. One significant change was that the shock mounting layout went from a parallel style setup to an offset design. While this is great for controlling axle wrap, it required a thorough reevaluation of the way ICON shocks would need to function to make the most of the refreshed rear end. In the R&D process it was found that Gen. 2 had more available wheel travel than the original Raptor, and by way of an offset upper eyelet ICON engineers laid out a 3.0 Series bypass shock that maximized travel while utilizing the factory shock mounts. To control the rear end in specific ranges of travel, these shocks feature 3 unique bypass zones – 2 on the compression stroke and one rebound. Unlike other shocks that have a loud bypass “click” when functioning, ICON bypass valves feature damped valve stops for quiet and precise operation. Easy-to-adjust knobs allow for quick changes to shock tuning without the need for tools, enabling the user to dial in their ride with minimal down time. When in use on and off-road, ICON’s patented Anti-Wobble Link stabilizes the shocks to prevent rotation and possible collision. Additionally, urethane shin guards protect the shock shafts and rod ends under grueling off-road conditions. 2017-2020 FORD RAPTOR STAGE 3 SUSPENSION SYSTEM TECH NOTE: 2019-2020 VEHICLES WITH FACTORY LIVE VALVE SHOCKS WILL NEED AN ICON DAMPER INTERFACE DEVICE (PN: 95199) TO ALLOW THE VEHICLE DRIVE MODES TO OPERATE CORRECTLY WITH THE OE SHOCKS REMOVED.

• Easy-to-adjust CDC Valve (Compression Damping Control) has 10 compression damping settings to suit all types of driving styles across varying terrain and vehicle cargo setups
• 12" finned aluminum reservoirs provide generous oil volume and increased surface area for enhanced cooling properties and consistent damping
• 10" finned aluminum reservoirs provide generous oil volume and increased surface area for enhanced cooling properties and consistent damping
• Specially engineered damped valve stops for quiet and precise operation without the loud “clicking” noise common with other brands
• ICON’s multi-stage hydraulic “Bump Zone” exponentially increases bottom-out resistance in the last 40% of compression travel
• Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
• “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
• 3-tube bypass design and "Bump Zone" technology provides multiple unique zones of damping and rebound control
• 50% increase in damping ability over OE shocks for excellent performance in extreme off-road conditions
• Offset upper eyelet with patented ICON Anti-Wobble link for optimized shock mounting and packaging
• Patented Delta Joint (U.S. Patent No. 10,731,700) for maximum durability and noise-free operation
• High quality ICON-engineered coil springs are guaranteed for life against sagging or breakage
• Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
• CNC machined 6061 billet aluminum construction for light weight and exceptional strength
• Leaf separators and tip inserts reduce noise and friction while increasing ride comfort
• Barreled coil spring design maximizes travel and provides more efficient packaging
• Urethane shin guards help to protect the shock shaft & rod end from premature wear
• Easy-to-adjust detented knobs offer quick adjustability without the use of tools
• Triple military wrap front eyelet and rear half wrap for increased durability
• Superior low speed control reduces body roll and increases on-road stability
• FK Rod End COM12 spherical bearings ensure maximum strength and durability
• PTFE Lined 7/8” FK Rod Ends increase rigidity and improve response
• Camber and caster adjustability allows for precise wheel alignment
• Bolt-in design makes for an easy install into OEM shock location
• Direct bolt-in to OEM spring location makes for an easy install
• CAD plated shock body with hard anodized piston and top cap
• ICON double adjuster sleeves for easy on-vehicle adjustment
• 3 user-adjustable spring rates for unique vehicle setups
• Built-in caster correction improves front end geometry
• Adjustable coilovers yield 1-3” of front lift height
• Vehicle specific taper pin provides OE-like fitment
• Heavy duty CNC machined 1” shock shafts
• BILLET ALUMINUM UPPER CONTROL ARM KIT
• Built in o-ring sealed dust cover cap
• Rebound leaf reduces severe axle wrap
• 3.0 SERIES 3-TUBE BYPASS SHOCK KIT
• 3.0 SERIES COILOVER SHOCK KIT
• MULTI-RATE LEAF SPRING KIT
