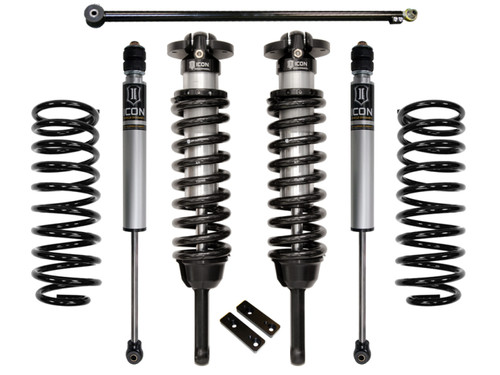

ICON 10+ Lexus GX460 0-3.5in Stage 7 Suspension System w/ Tubular UCA

The Stage 7 system includes vehicle-specific tuned, extended travel 2.5” coilover shocks with remote reservoirs, for improved heat dissipation and off-road performance, paired with tubular steel Delta Joint upper control arms. This combination allows for extended wheel travel and geometry correction for more precise wheel alignment. The coilovers are also height adjustable from 0-3.5” of lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. ICON 2” lift rear coil springs paired with 2.5 Aluminum Series remote reservoir rear shocks utilizing vehicle-specific valving balance the performance of the truck from front to rear. CDC Valves are installed in front and rear shocks and allow for end-user compression changes to provide optimal ride quality across all types of terrain and vehicle cargo configurations. ICON's tubular steel rear upper and lower links are much stronger than the OE units, feature low maintenance multi-durometer bushings, and can be adjusted for optimum pinion angle. On top of it all, the lower links have been designed to provide correct roll steer geometry for the best possible handling on and off-road. An adjustable rear track bar is also included for KDSS compatibility that also helps correct rear end alignment. The ICON Vehicle Dynamics 2010-UP Lexus GX460 Stage 7 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt. 2010-UP LEXUS GX460 0-3.5" LIFT STAGE 7 SUSPENSION SYSTEM WITH TUBULAR UCA APPLICATION NOTE #46: SUSPENSION SYSTEM COMPATIBLE WITH KDSS. FRONT SWAY BAR RELOCATION BRACKETS NOT USED FOR KDSS EQUIPPED VEHICLES. CERTAIN YEARS REQUIRE TRIMMING FOR FRONT RESERVOIR BRACKET FITMENT.

• ICON upper control arms allow for additional wheel travel (when paired with extended travel coilovers) while improving suspension geometry for predictable handling
• Patented Delta Joint (U.S. Pat. 10,731,700) combines the durability and weather resistance of a ball joint with the performance characteristics of a uniball
• 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• Tubular rear upper and lower links offer increased strength, improved geometry, and pinion angle adjustment
• CDC Valve technology allows for quick and easy compression damping adjustment without the need for tools
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Adjustable coilovers with remote reservoirs provide 0-3.5" of lift height
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• FK Rod End bearings for extended longevity and minimal deflection
• Bolt-on system means no cutting or welding necessary for install
• Included adjustable rear track bar ensures KDSS compatibility
• 6061 aircraft grade aluminum CNC machined components
• Increased wheel travel and ride quality over stock
