Edelbrock Chevy Gen III/IV LS Pro-Flo 4+ EFI Engine Management System

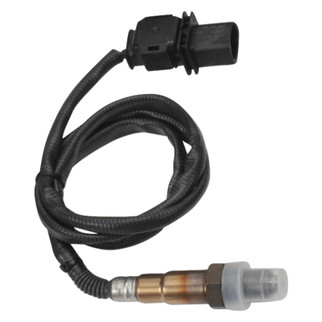

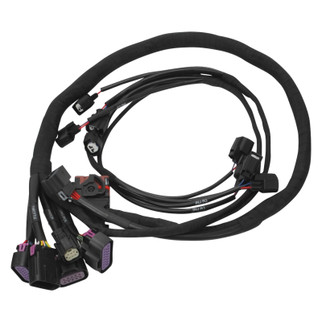

MAP, O2, and fuel pressure sensors. Note that some supporting wiring harnesses for drive-by-wire and alternator configuration are necessary determined by the reluctor wheel (either 24x or 58x). LS applications implement a speed density fueling strategy using an OEM MAP sensor which eliminates the factory MAF sensor, inlet air piping and air box. This allows unlimited options in your air intake design. The Pro-Flo 4+ ECU provides mounting versatility with a compact weather-resistant housing and features a unique self-learning capability that adjusts the fuel map as you drive, providing optimum performance with no need for laptop tuning or costly dyno sessions. Setup is quick and easy thanks to Edelbrock's E-Tuner 4 software for Android tablets and smartphones. A non-adjustable Alternator Control is set to regulate at 14.5 volts and only OEM alternators are supported. Minimal tuning adjustments are required when the provided base calibration is used, giving you great performance right out of the box. Pro-Flo 4+ is covered by a 2-year warranty and is backed by the industry's most extensive technical support team. This item requires additional components to complete the installation. See below for a list of items required to be purchased separately.

• Works with most intake manifolds with OEM DBW throttle bodies
• Works with 2- and 4-wire OEM alternator
• Supports 24x and 58x crank/cam types
• Simple plug-and-play installation
• Supports dual throttle bodies
• No laptop tuning required
