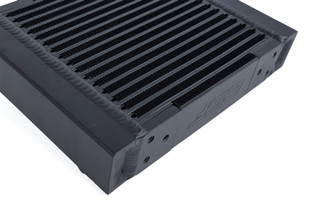

CSF Universal Large Single-Pass Oil Cooler - M22 x 1.5 - 12in L x 9.33in H x 2.16in W

CSF oil coolers are much more robust, durable, and can withstand a higher peak burst rate than common brazed plate-type/stacked designs. This allows the cooler to be mounted in areas that might get high debris (front fascia, diff cooler, side vents, etc). When using a conventional oil cooler, the type of mounting locations are often not considered due to the risk of damage. The CSF oil cooler is designed to withstand a tremendous amount of vibration and debris. You can even stand on it! CSF oil coolers are much more robust, durable, and can withstand a higher peak burst rate. This allows the cooler to be mounted in areas that might get high debris. It is designed to withstand a tremendous amount of vibration and debris. The CSF #8371 Cooling product is designed to be a "Custom Fit" application. The product installion may require modifications. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

• Overall Dimensions (including fitting bosses): 12.0" L x 9.85" H x 2.36" W (305mm x 250mm x 60mm)
• Satin Black Finish for Extreme Protection Against Corrosion and Debris
• Core Dimensions: 9.25" L x 9.33" H x 2.16" W (235mm x 237mm x 55mm)

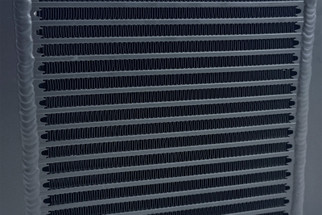

• "Aero-Flow" Bar Design for Lightweight, Strength, and Maximum Flow
• Two 1/8 NPT Ports on each tank for bleeding or temperature sensors
• High Efficiency & Rugged Durability Bar/Plate Design

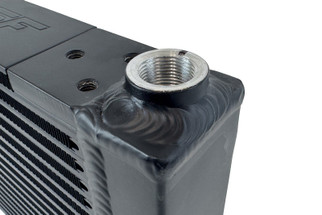

• M22 x 1.5 Inlet/Outlet Connections
• Fluid Capacity: 1.5L (1.6 qt)
• Pressure Tested at 120psi
• 2-Year Limited Warranty
