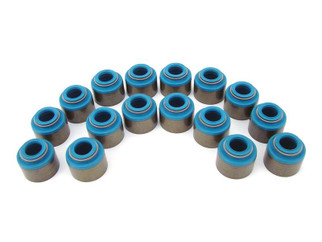

COMP Cams Valve Seals 5/16in PTFE

COMP Cams offers a complete line of valve stem Seals, from the stock GM "O-Ring" to the positive-stop PTFE Seal. These Seals are a must to keep unwanted oil from entering the combustion chamber through the clearance in the valve guides. The "O-Ring" Seals use the standard retainer and oil splash shield. The umbrella Seal is normally used when a larger-than-stock diameter spring is used, in the case of a double spring, the positive-stop PTFE Seal is used. We also have a smaller diameter Viton Seal available for triple spring Applications. COMP's Positive Stop PTFE valve seals offer more clearance for dual springs with better sealing than o-ring or umbrella seals. These 500 seals have a .630" outer diameter and fit applications with 5/16" valves and .530" OD valve guides. Available individually under 500-1, in a set of 16 under 500-16 Engines with 0.530" OD Valve Guides and 5/16" Valve Stems
