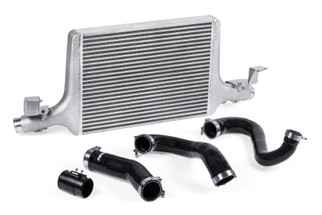

APR 18-20 Audi A5 Sportback B9 2.0T Intercooler Kit

The APR Intercooler System is a massive front mounted upgrade that dramatically reduces intake air temperature (IAT), minimizes heat soak, and provides increased performance! The system is an easy to install, direct bolt-on design, that is recommended at every stage of performance. Fits Audi A4 17-20, A4 Quattro 17-24, A5 Sportback 18-24 Please note, this system does not fit ROW vehicles with the shorter crash bar support brackets.

• Multi-ply silicone design with internal wire reinforcement, fluorosilicone internal protective layer and APR's EZ-Flow stepped design.
• Strong, stainless-steel Clampco T-Bolt clamps provide better clamping for increased protection against hose slippage and boost leaks.
• Precision CNC-machined for secured sensor placement with an attractive matte-black anodized finish.
• 3.125" x 5.75" x 28.25" - 162.4 in² front. & 507.62 in³ volume - OEM
• 2.250" x 16.2" x 22.00" - 356.4 in² front. & 801.90 in³ volume - APR
• Low pressure drop + highly effective cooling = high performance!
• Rigorous testing determined core style, fin density, and size.
• Simple bolt-on install with no trimming or drilling necessary!
• With the best equipment and smartest engineers, it just works!
• Retained as high as 45 AWHP compared to the factory system!
• Engineered for low turbulence/restriction and maximum flow
• Organically shaped to promote airflow across entire core.
• Increases HP while minimizing power-robbing heat soak!
• Pressure tested to prevent power robbing boost leaks.
• Bar-and-plate core with staggered and louvered fins.
• Massive frontal surface area and core volume
• Dramatically lowers intake air temp (IAT)
• Designed by engineers with lasers
• Silicone inlet and outlet hoses
• Highly effective core design
• Smooth cast end tanks
• Clampco T-bolt clamps
• Billet MAP housing
• Easy to install
